Pivoting Router Lift OFL3.0 and Suhner Motor Starter Set - US Red Edition

Pivoting Router Lift OFL3.0 and Suhner Motor Starter Set – US Red Edition

Ursprünglicher Preis war: €1,303.76Aktueller Preis ist: €109.13.

Artikelnummer: SKUxCom77Rx Kategorien: Fräsen, Oberfräsenlift Schlagwort: Sauter Marke: Sauter

Beschreibung
Rezensionen (0)

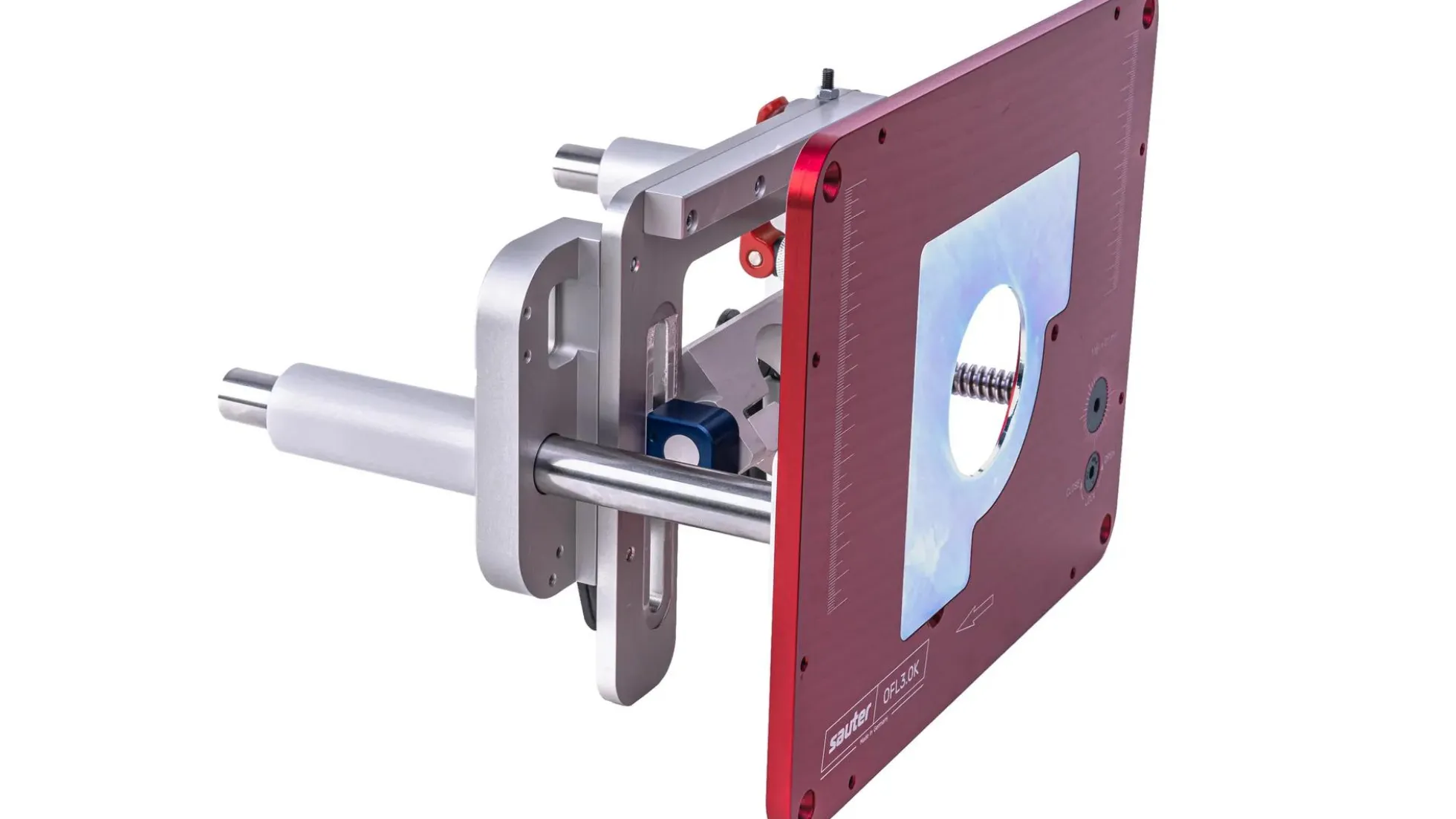

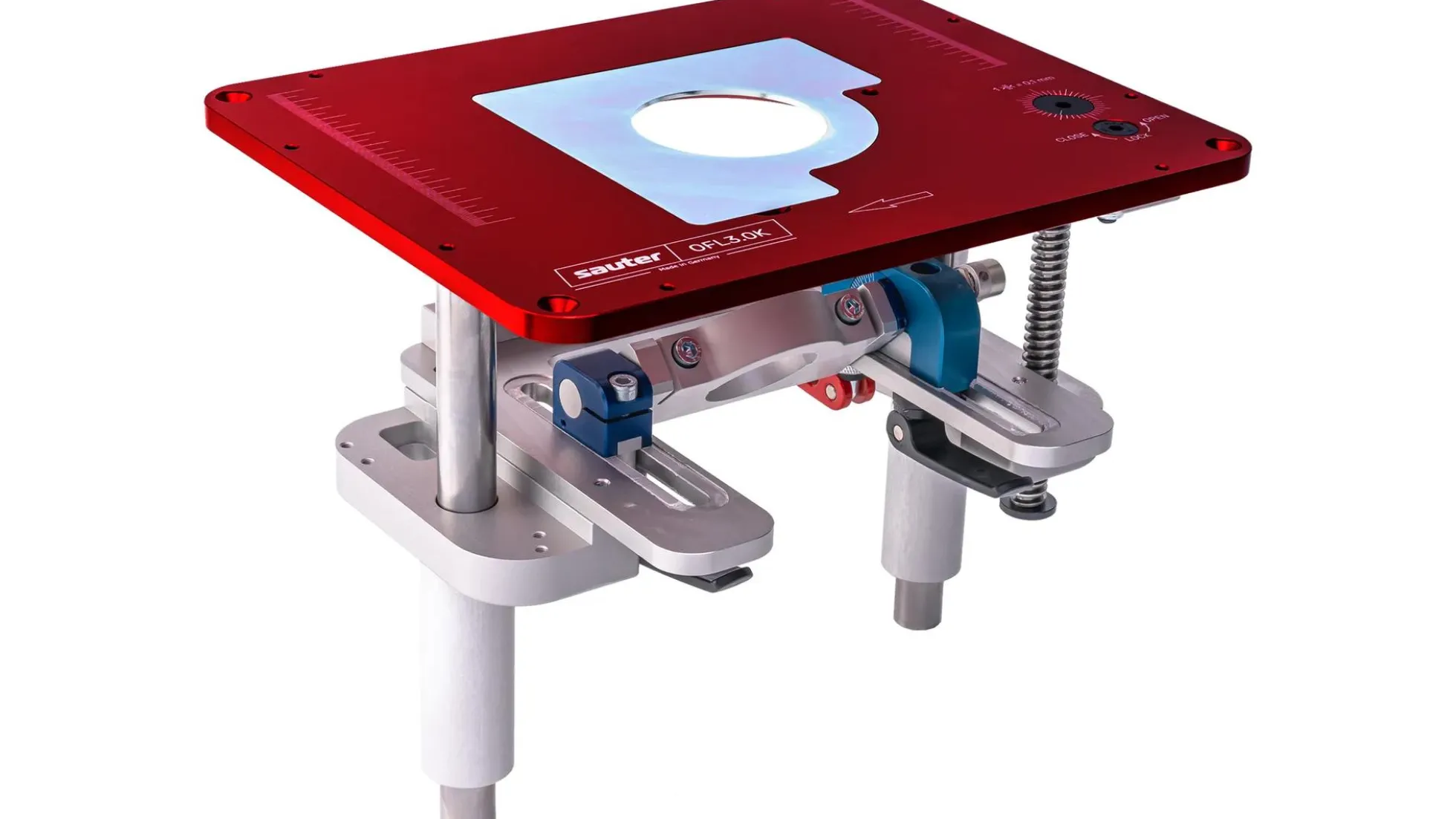

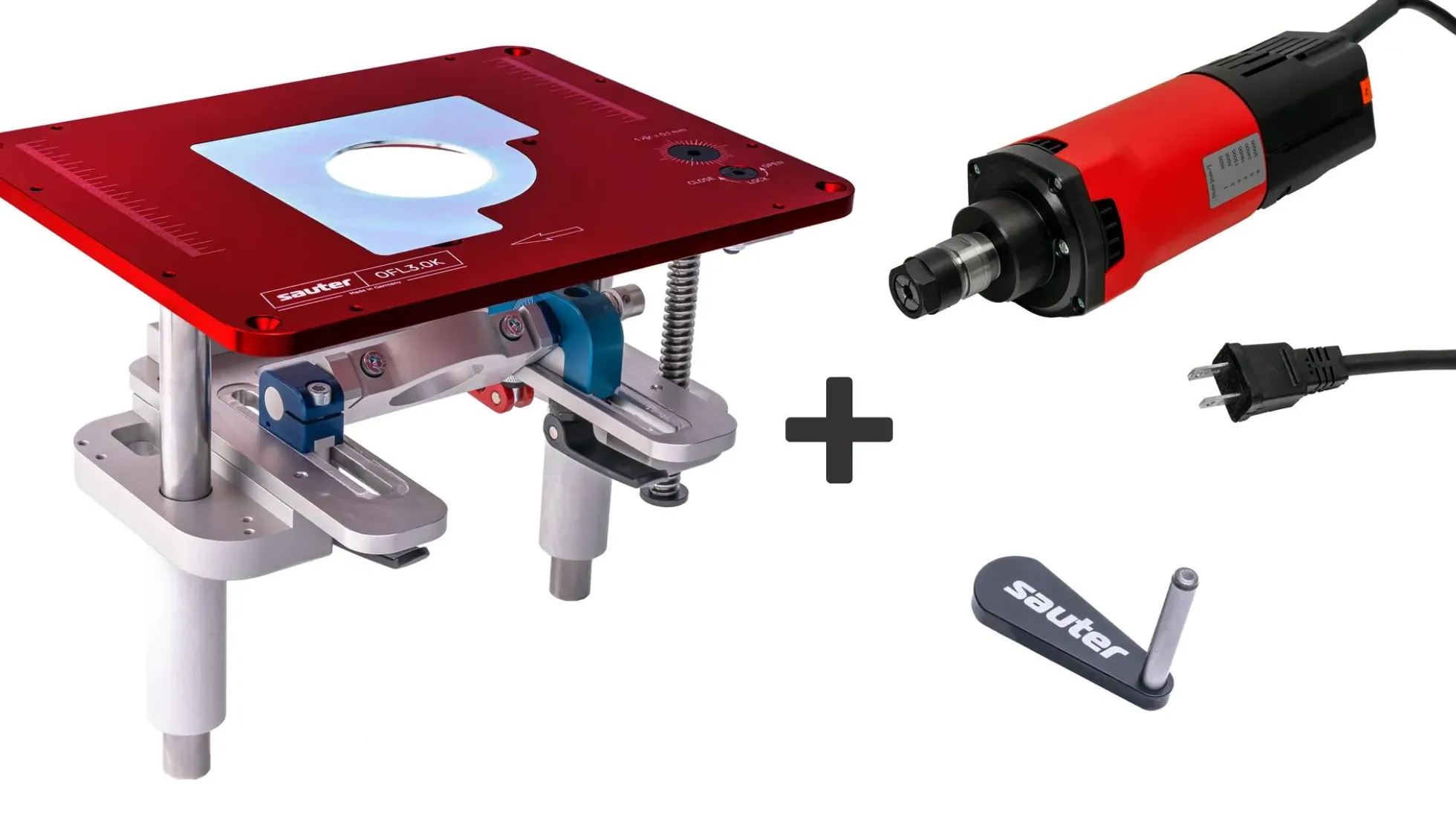

Sauter OFL3.0 Red version Pivoting router lift and Suhner UAK30 RF SPZ-L Starter Set

Unique Lift packet especially developed for the North American market with a powerful router motor fully compatible and compliantwith the 120v / 60hz power grid

This kit is your gateway to the world of router tables. Our patented swivelling Sauter router lift offers unrivalled precision and endless new routing possibilities. Easily cut mortices, bevels and even skewed grooves at any angle from -5° to +50° with the pivoting vernier scale. Common angles such as 15°, 22.5°, 30° and 45° snap into place effortlessly.

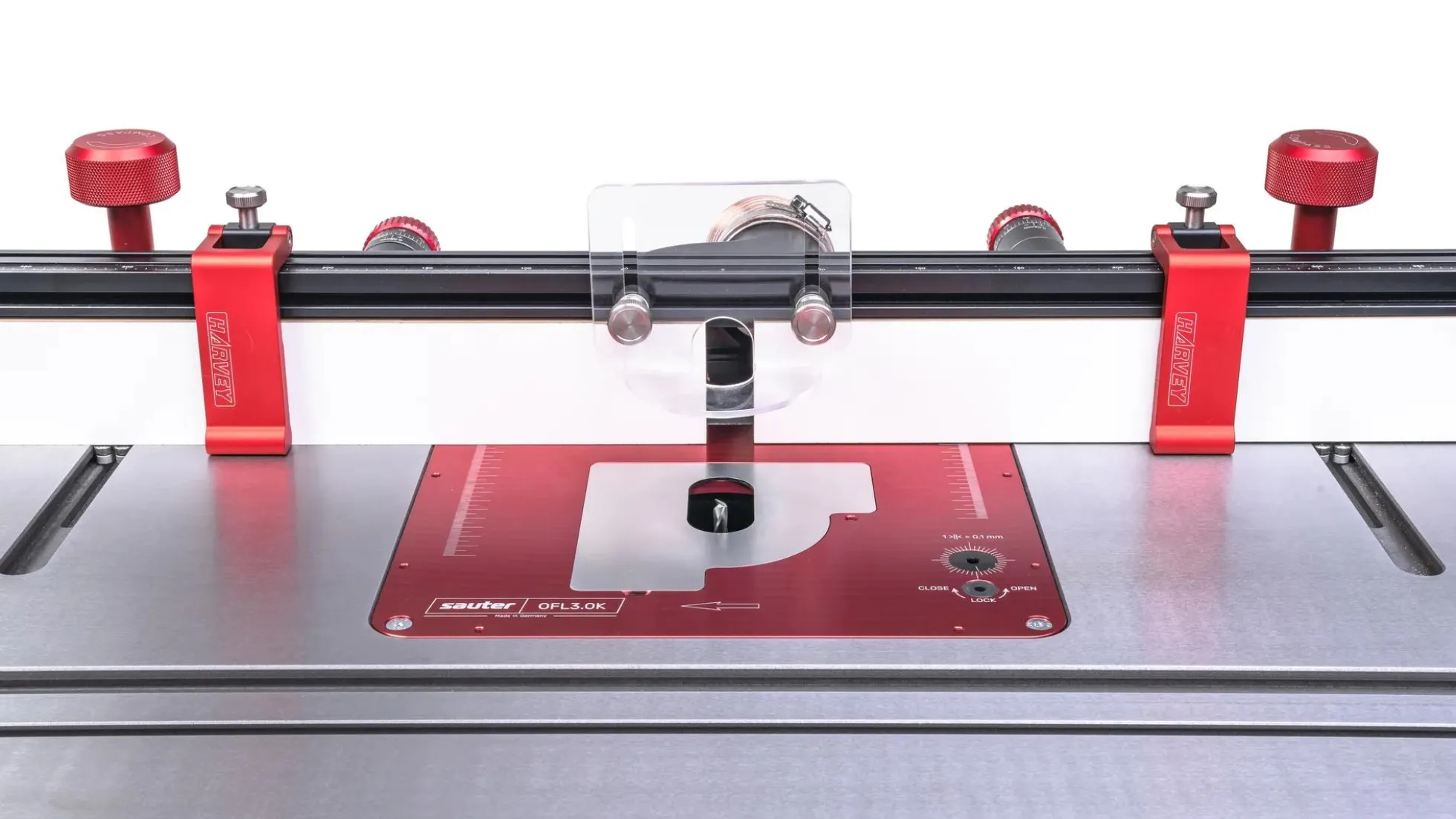

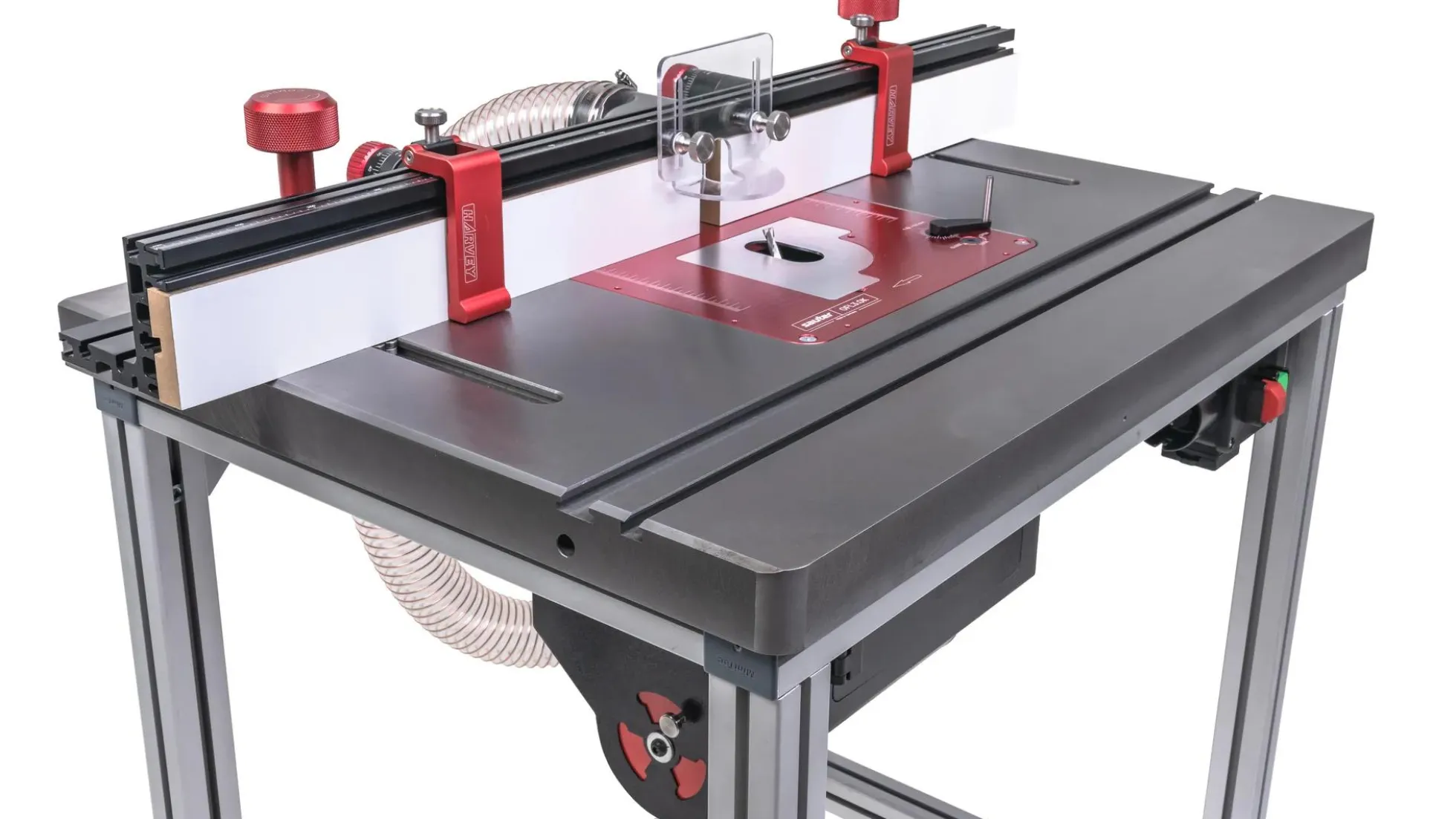

Compatible with a range of popular router tables including Kreg, WoodRiver, Woodpeckers and Harveys, or customise your own to suit your needs. This lift/motor combination is a versatile addition to your woodworking setup.

Using a motor and lift in your router table provides much more flexibility and precision than using a plunge router mounted in a table insert. It simplifies standard tasks and allows you to shape narrower boards, straighten board edges, trim edges and perform various other woodworking tasks. Router tables improve the accuracy and efficiency of all router-related operations. They also enable operations typically reserved for a shaper, such as edge shaping, hinge making, dado cutting and a range of woodworking tasks beyond the capabilities of a stand-alone plunge router.

Manufactured in our factory in southern Germany, these lifts embody the region’s tradition of exceptional craftsmanship. The robust motor, sourced from the renowned German company Suhner in the Black Forest, is world renowned for its quality and is favoured by German car manufacturers.

Technische Daten

sauter OFL3.0 Red Router Lift

Pivots from -5° to 50°
Classic snap-in points 22.5°
30°
45°
90°
Max. Routing cutter Ø
3.26″ ( 86 mm )
Cutter opening Ø
3.86″ ( 98 mm )
Travel
3.94″ ( 100 mm )
Adjustment travel per revolution
0.8″ ( 2 mm )
Spindle locking from above with hexagon socket (5 mm)
Dimensions of insert plate
9 1/4″ x 11 3/4″ x 3/4″ ( 298 x 235 x 9 mm )
Corner radius of insertion plate
3/4″ (19,05mm)
Depth below table
9 1/2″
Weight
approx. 11lb ( 5.0 kg )

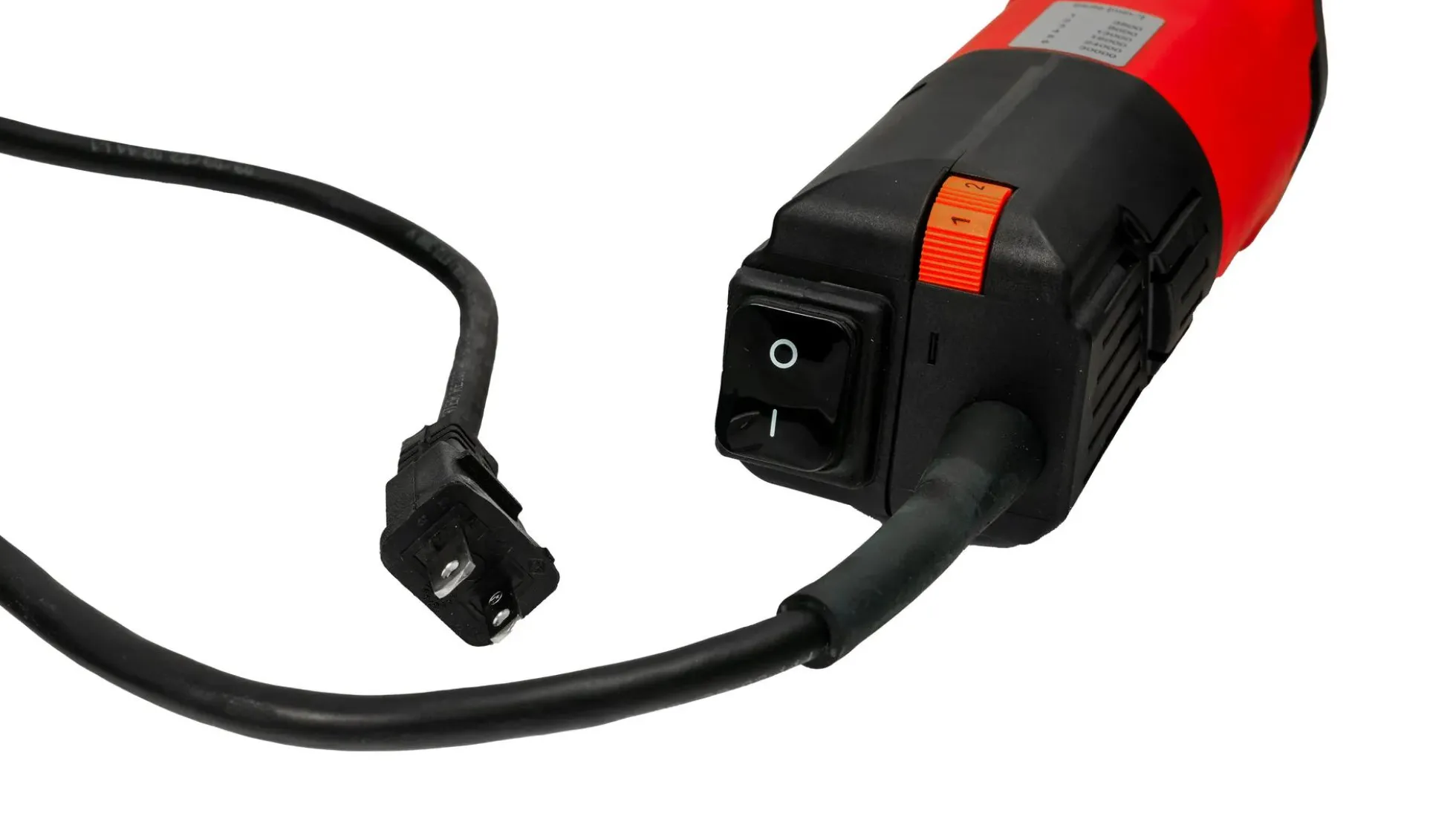

Suhner UAK 30 RF SPZ-L

Input power
1,340 watts
Output Power
1.8hp
Infinitely variable speed
3,500 – 30,000 rpm
Torque
0.45 Nm
Voltage
120 volts / 60 Hz
Noise level
72 dB at 9000 rpm
Max. Router bit Ø
2.16″ ( 55 mm )
incl. collet chuck
1/4″
Further collets to be purchased separately.
Collets up to 1/2″ (12.7 mm ) possible
Weight
6.3lb ( 2,85 kg )

Eigenschaften & Vorteile

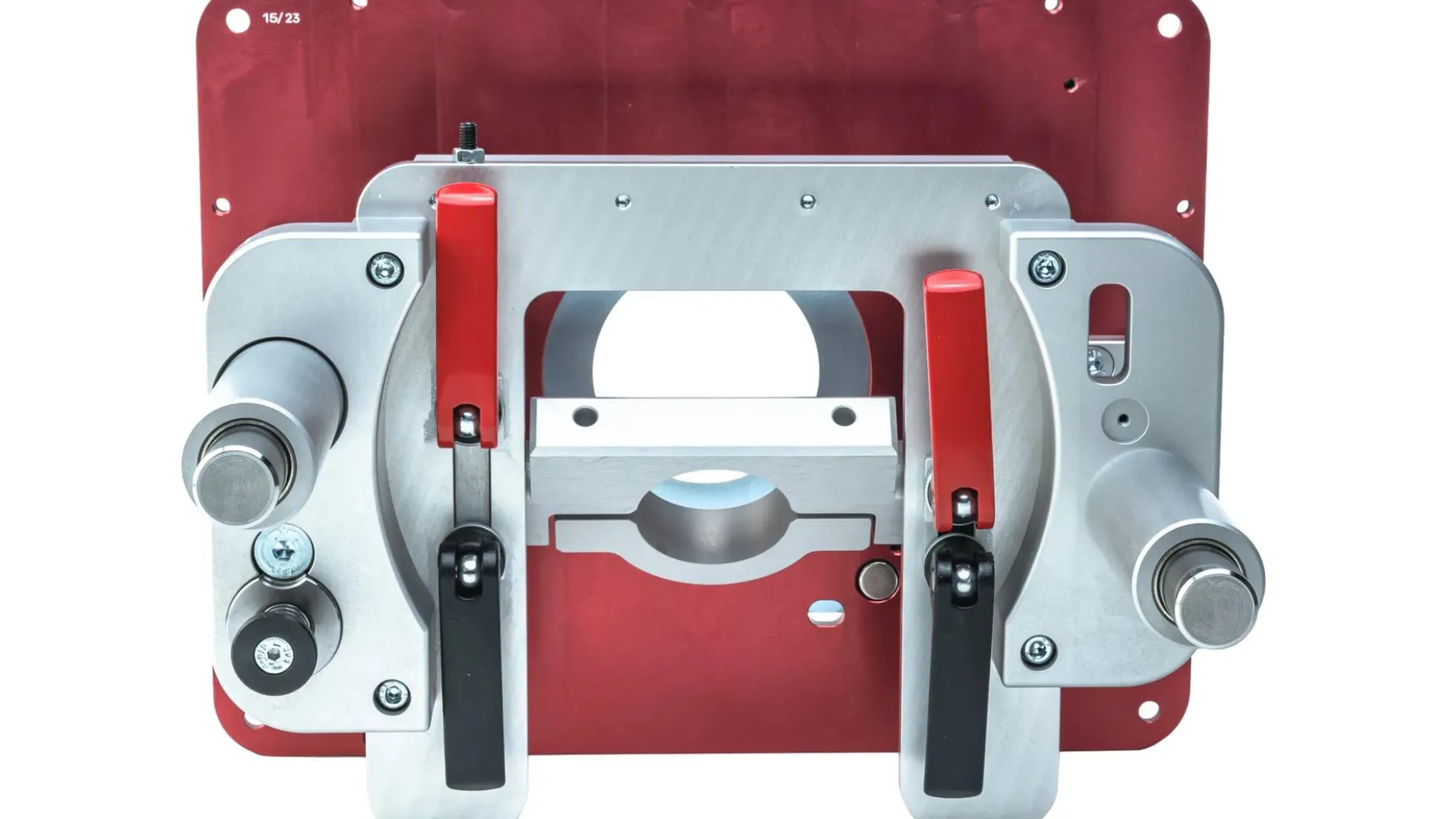

sauter OFL3.0 PivotingRouter Lift
- Fine height adjustment to 1/10mm –Height fine adjustment extremely precise adjustable, with exact scaling and effective spindle lock, conveniently operated via hexagon socket screw.
- Smooth-running spindle columns –Enable a stepless and exact fine height adjustment.
- Safe Routing for any diameter –The magnetic reduction plates offer more choice and control in choosing the right hole size. Perfectly adapted to the size of thecutter – especially for small workpieces.
- Routing also without rip fence –2 drill holes for the starter pin allow you to free e.g. round workpieces without rip fence (see optional accessories separately – not in Delivery Includes).
- Absolutely flat –Simple levelling of the OFL3.0K by means of levelling screws in the insertion plate. Optionally a frame for a permanent level adjustment can be purchased.
- No own drillings necessary –Mounting holes (countersunk head) for quick Router Tableinstallation are already pre-drilled.
- Lasered scaling –Scaling on the surface for exact alignment of the rip fence.
- Additional recessed grip for easy changing of the reduction plates.
- Quality100% from Germany.
- Fits perfectly inKreg and Harveyrouter tables and many more

Suhner UAK 30 RF SPZ12
- Ideal for the router table: Powerful – low weight – tool holder up to 12.7 mm (1/2″).
- Protectively insulated universal motor with extremely high efficiency – unrivalled in robustness and effect.
- Extremely powerful, enormously high-torque motor with large power reserve in a compact design.
- Very stable clamping neck Ø 43 mm (1.68″) in steel design – for installation in drill stands, CNC and milling devices.
- Precision double ball bearing – for powerful and highly accurate routing.
- Tool holder via classic OZ collets with clamping nut for optimum guidance of the tool shank and precise concentricity.
- Exact concentricity even under the heaviest loads – guarantees results and safety.
- Ideally suited for heavy routing operations in window construction, in the furniture industry, for dowel and profile routing, for edge processing, etc..
- Design incl. tacho control electronics for constant working speeds for even cutting speeds, high running smoothness, blocking protection, soft start for jerk-free starting, fast cycling and PTC thermal monitoring.
