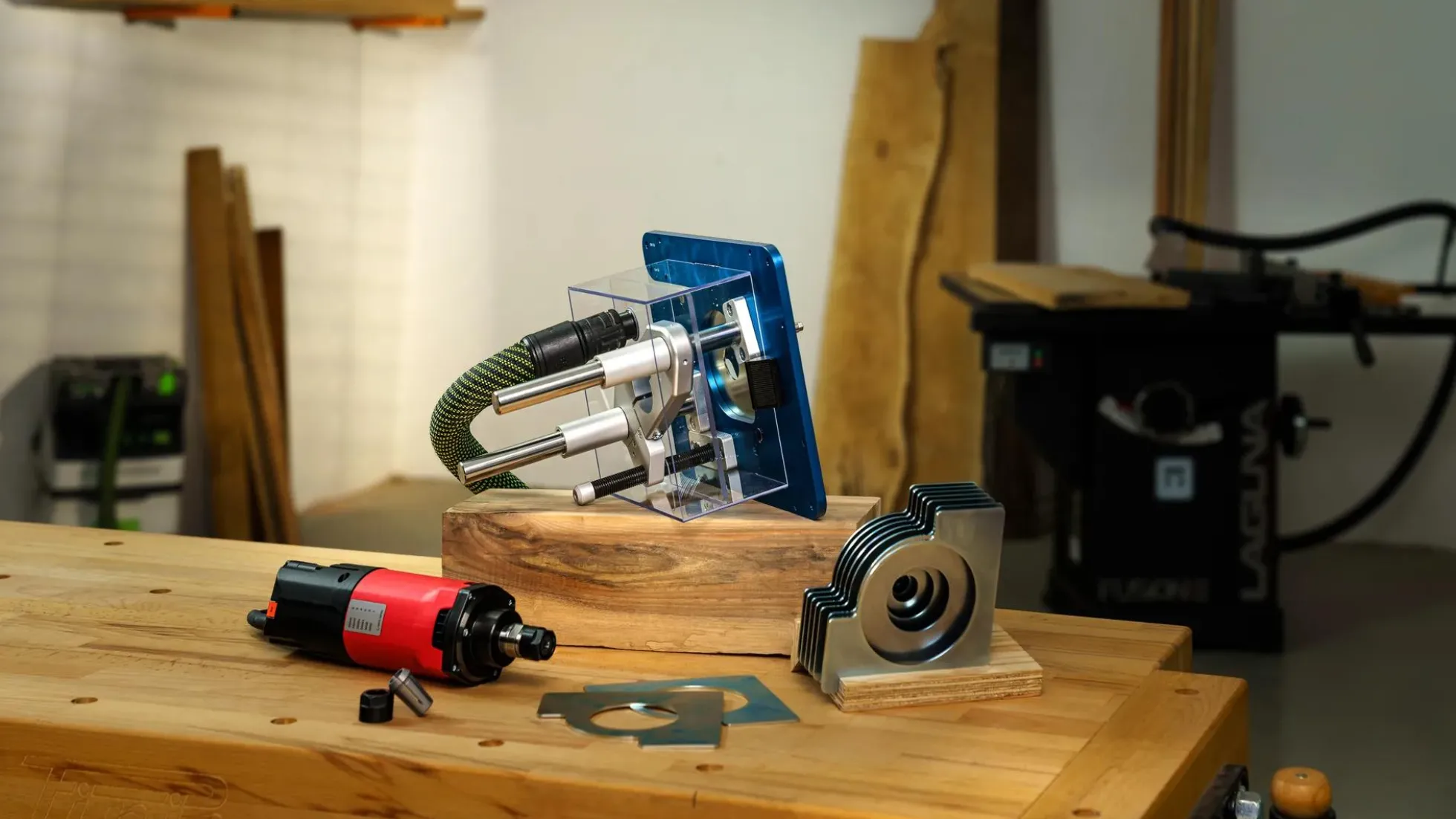

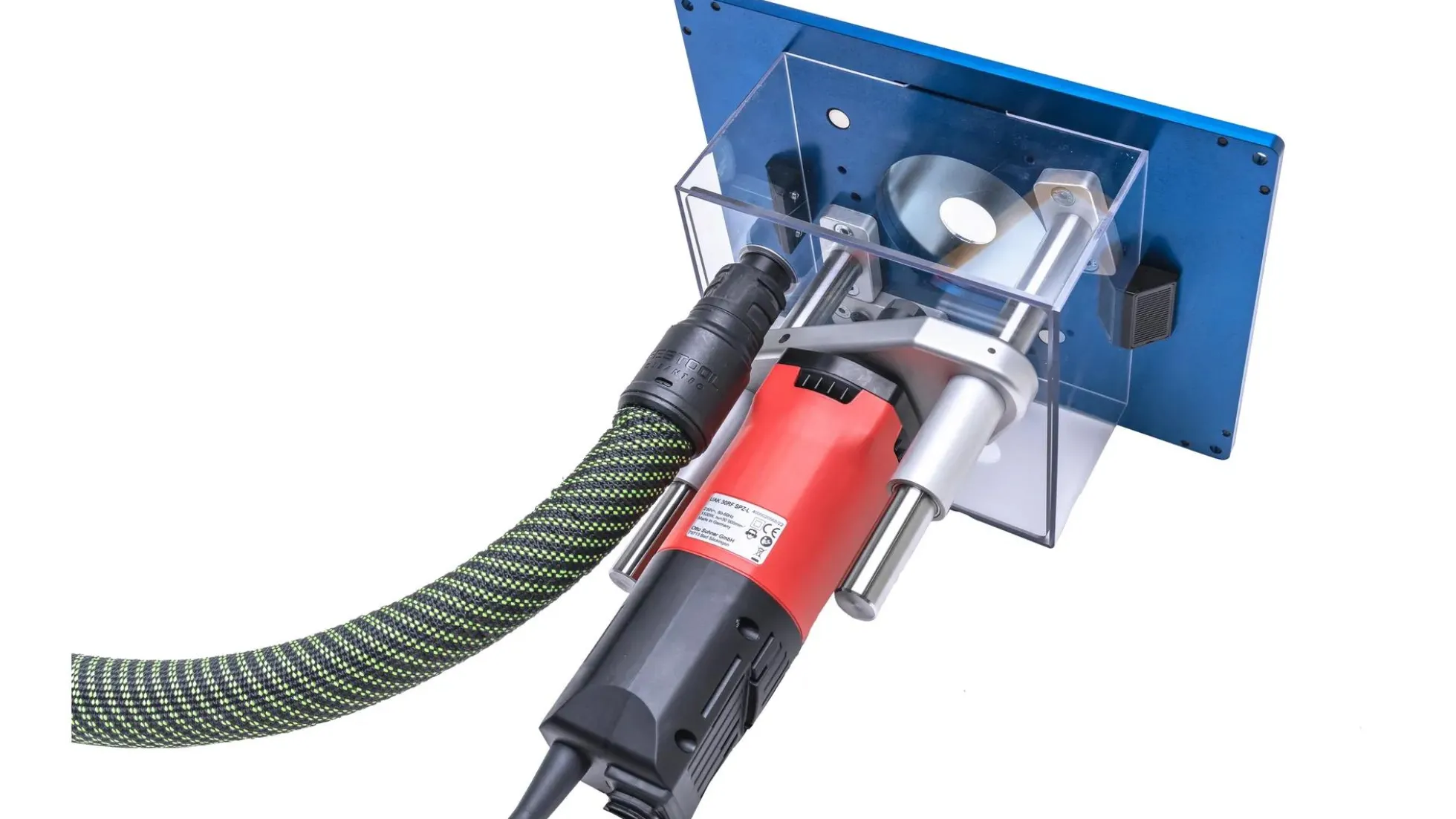

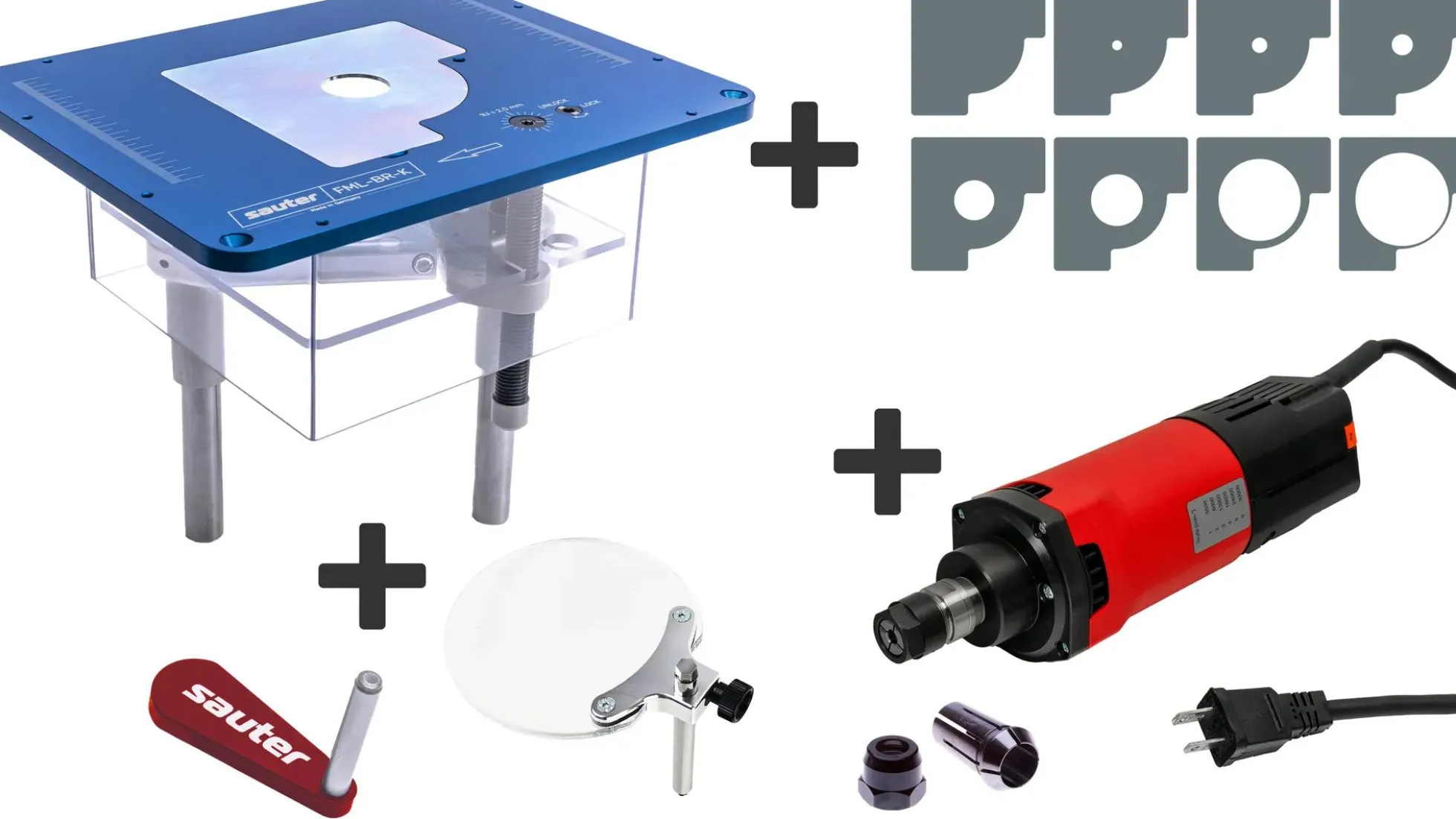

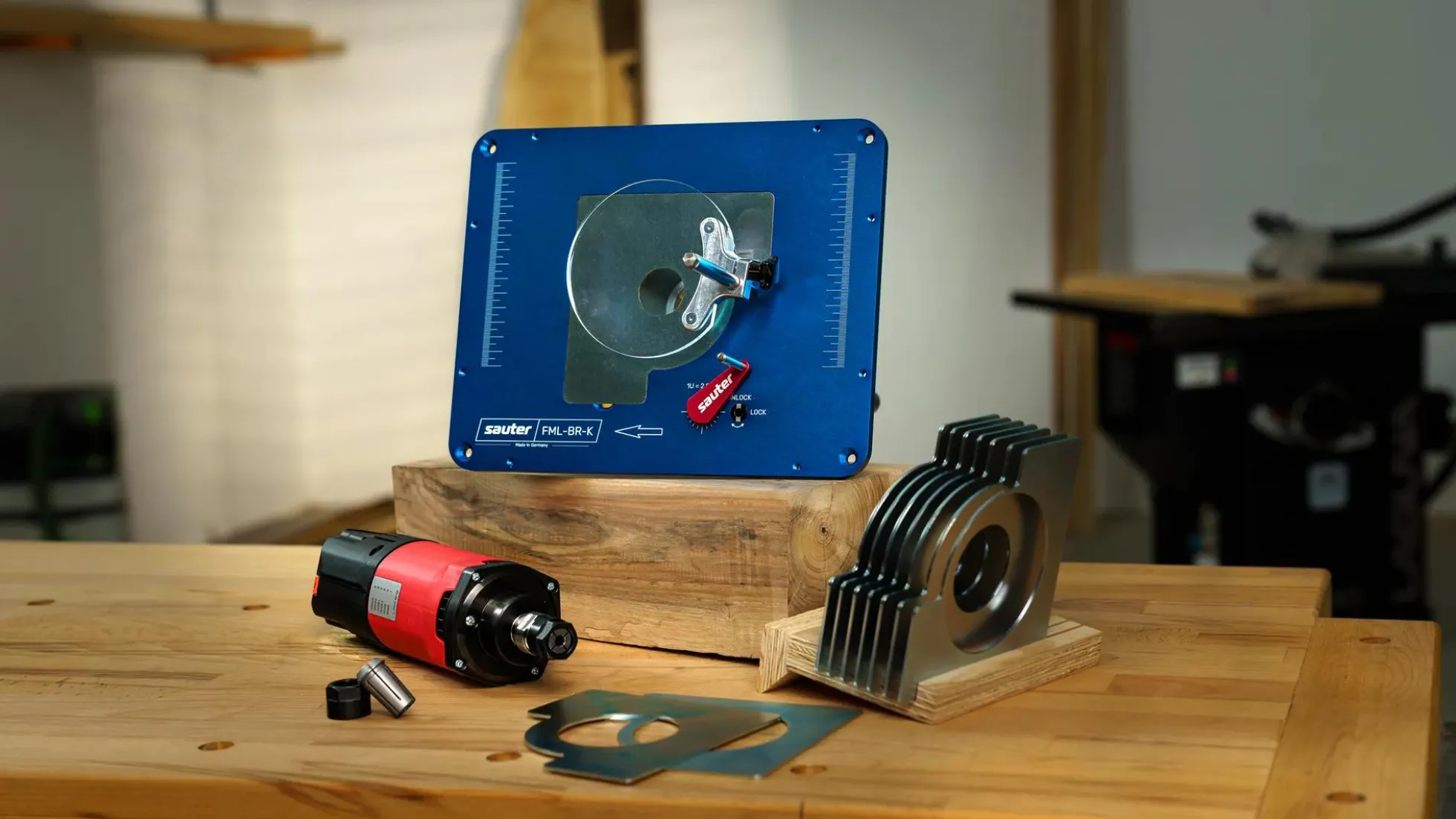

Router Lift FML-BR and Suhner Motor Complete Set – US Blue Edition

Sauter FML-BR Blue version router lift and Suhner UAK30 RF SPZ-L Complete Set

Version especially developed for the North American market with a powerful router motor fully compatible and compliantwith the 120v / 60hz power grid

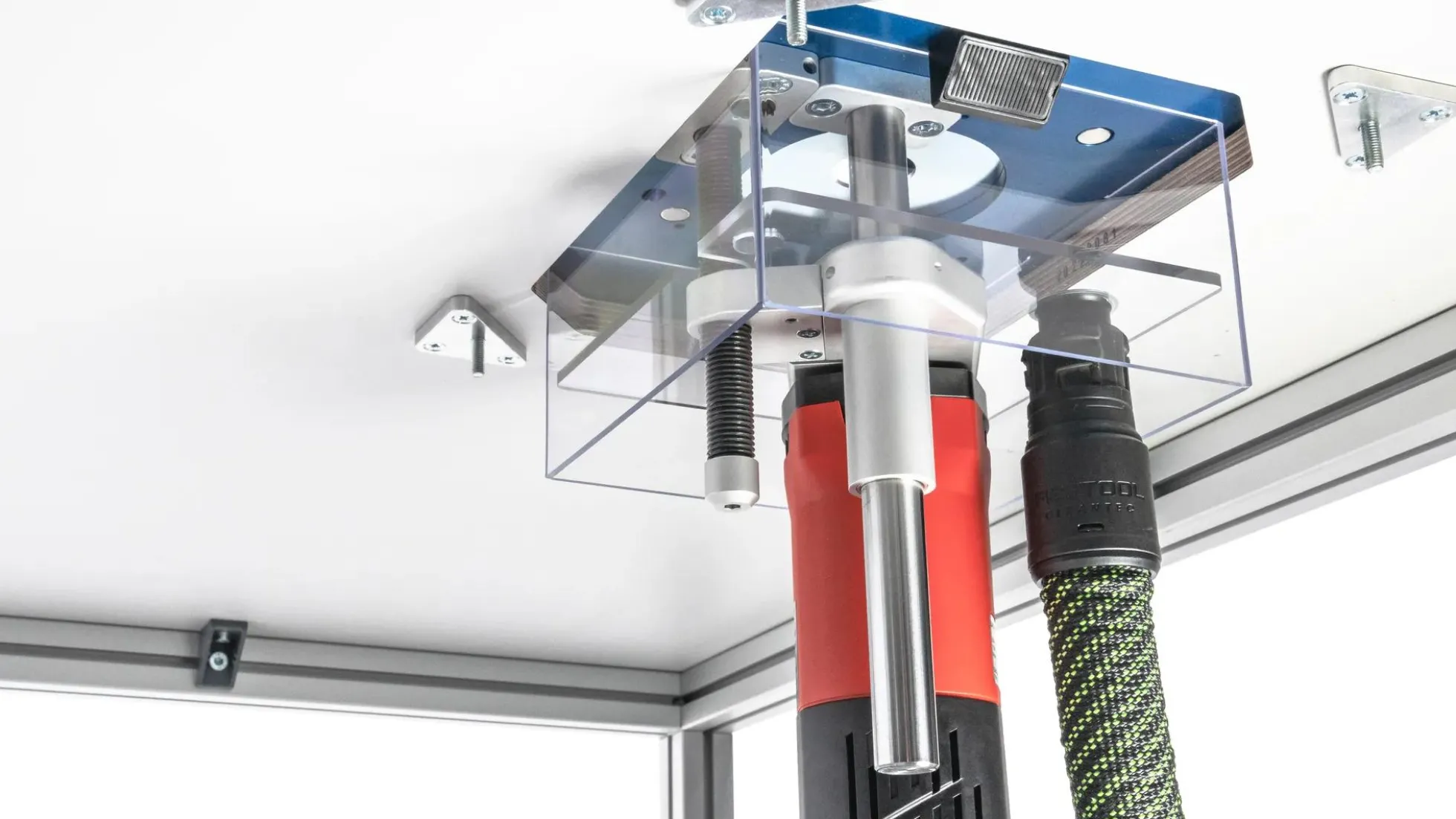

This set serves as your gateway to the realm of router tables. Our top-tier Sauter router lift boasts unparalleled precision and exceptional dust extraction, courtesy of the enclosed dust compartment beneath the table. Crafted in our manufacturing plant in southern Germany, these lifts uphold the region’s legacy of exquisite craftsmanship. The robust motor, sourced from the esteemed German company Suhner in the Black Forest, is renowned globally for its quality, their motors are the preferred choice among German automotive manufacturers.

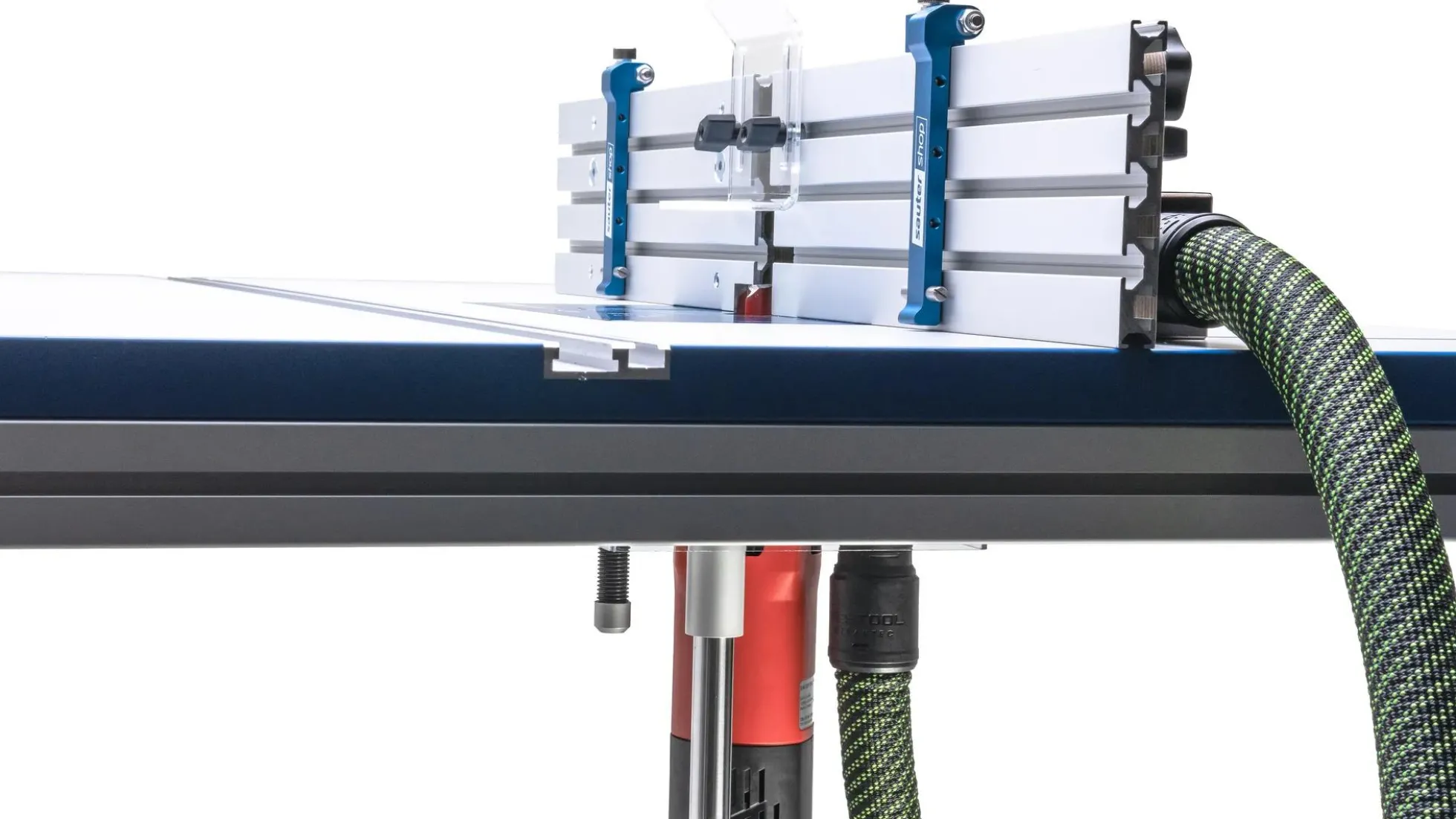

Compatible with various popular router tables, including those from Kreg, WoodRiver, Woodpeckers, and Harveys, or make you own table to siut your needs. This lift/motor combination is a versatile addition to your woodworking setup.

Using a motor and lift in your router table provides significantly more flexibility and precision compared to using a plunge router mounted in a table insert. It simplifies standard tasks and enables shaping of narrower boards, straightening board edges, trimming edges, and various other woodworking tasks. Router tables enhance the accuracy and efficiency of all router-related work. Moreover, they enable operations typically reserved for a shaper, such as edge shaping, hinge making, dado cutting, and a range of woodworking tasks beyond the capability of a standalone plunge router.

Technische Daten

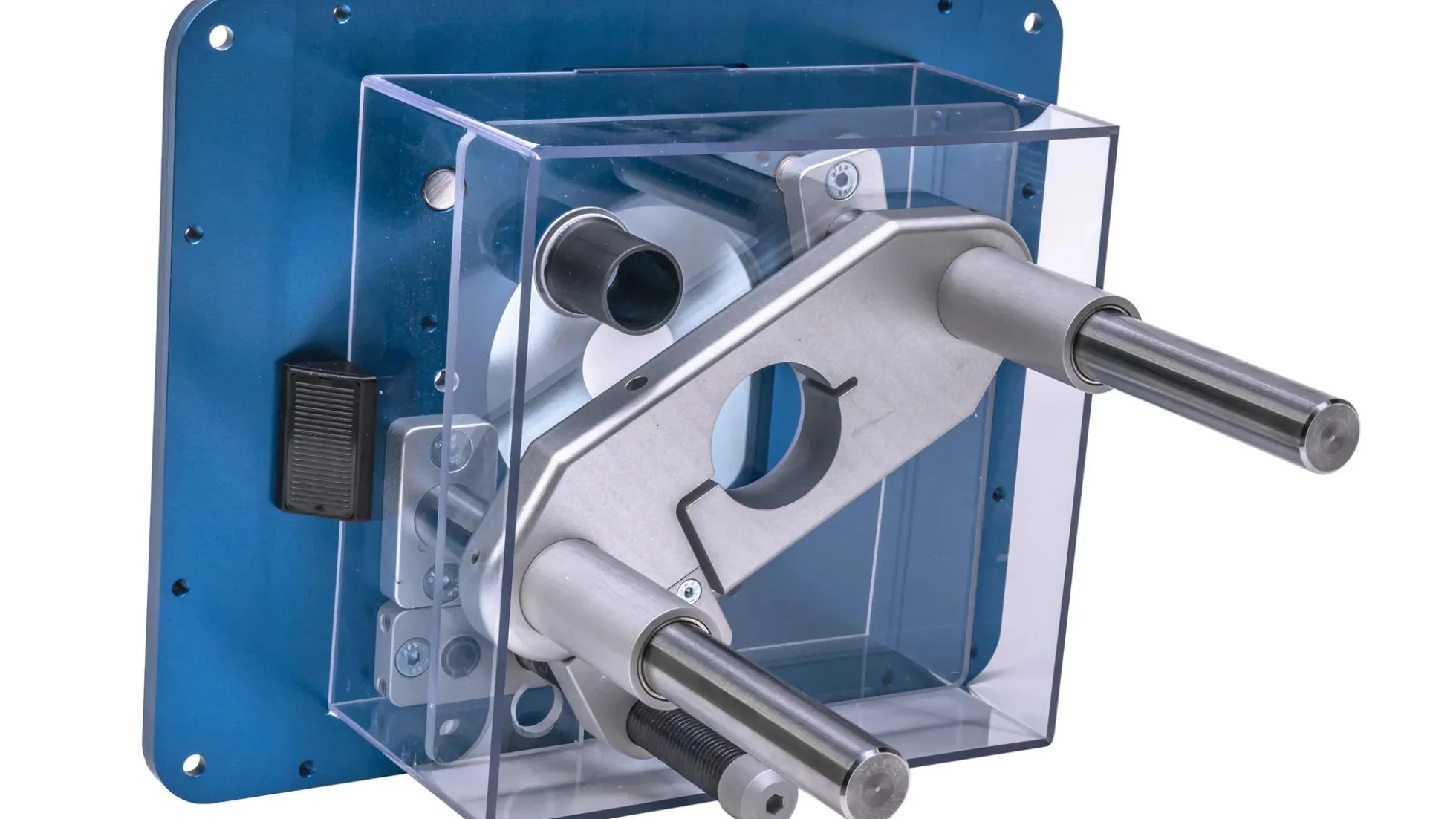

sauter FML-BR RL Blue Router Lift

• Max. Routing cutter Ø
  3.26″ ( 86 mm )
• Cutter opening Ø
  3.86″ ( 98 mm )
• Travel
  3.94″ ( 100 mm )

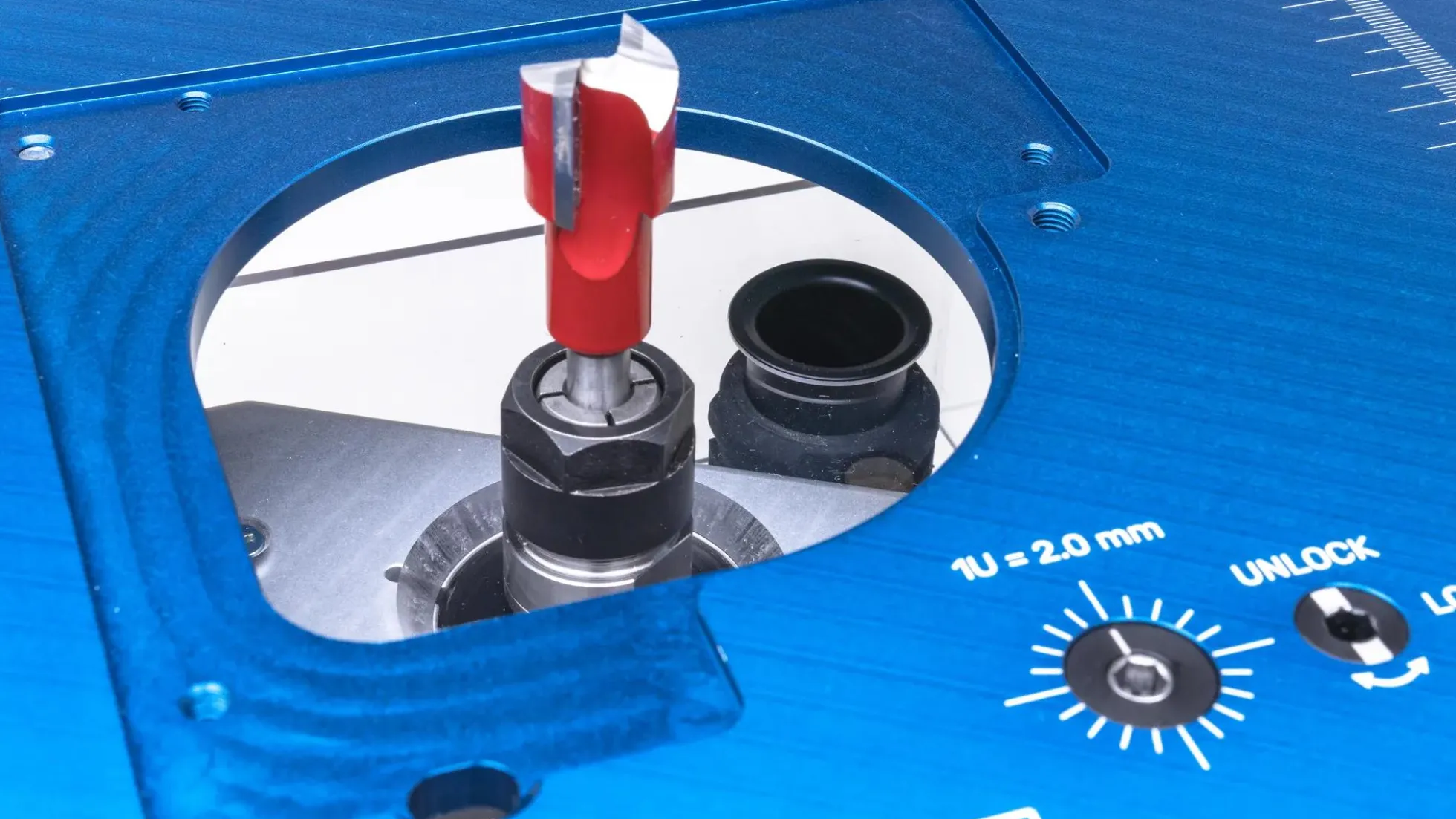

• Adjustment travel per revolution
  0.8″ ( 2 mm )
• Spindle locking from above with hexagon socket (5 mm)
• Dimensions of insert plate
  9 1/4″ x 11 3/4″ x 3/4″ ( 298 x 235 x 9 mm )

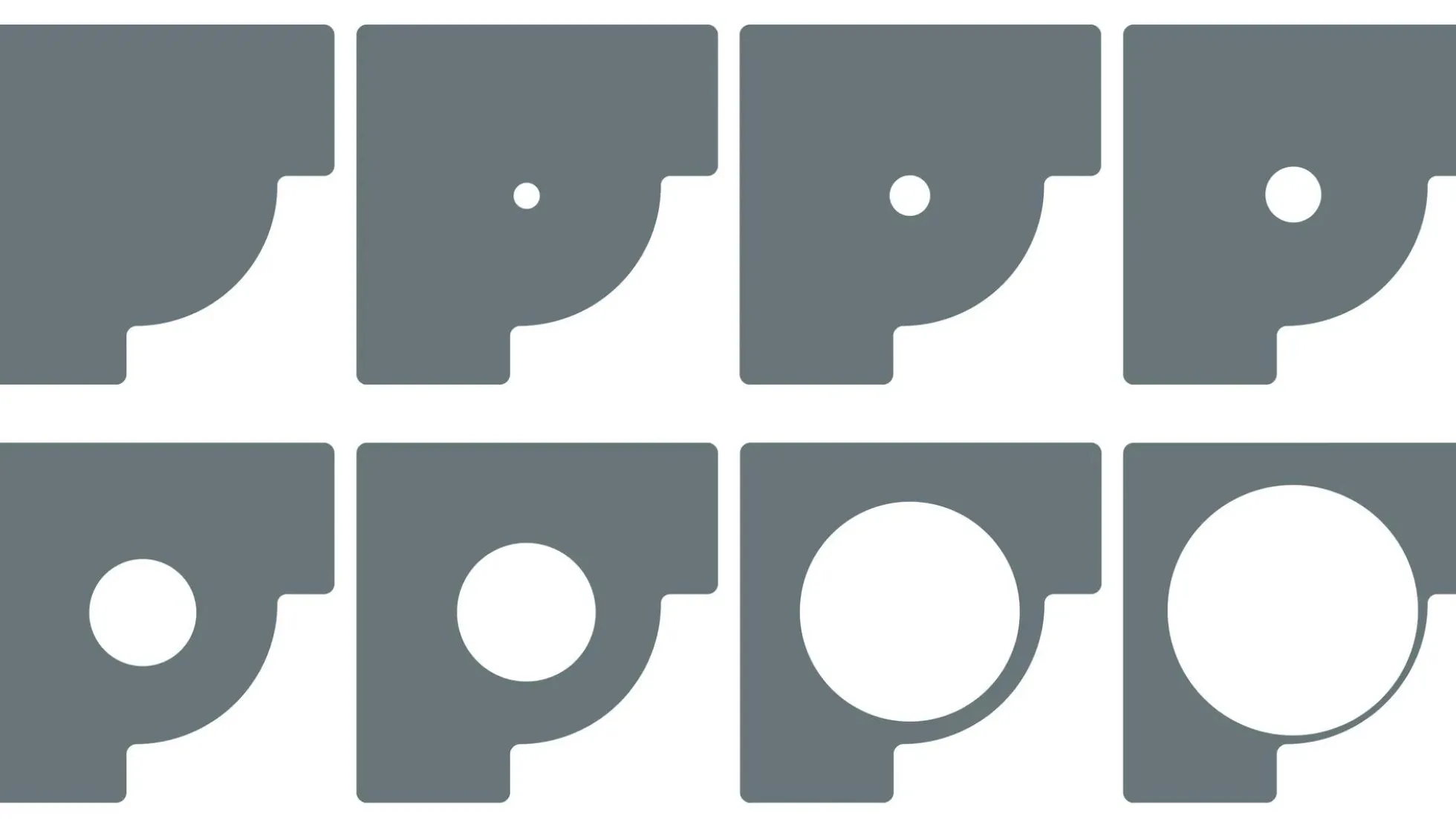

• Corner radius of insertion plate
  3/4″ (19,05mm)
• Depth below table
  8 1/3″
• Weight
  approx. 8.8lb ( 4.0 kg )
• Extraction nozzle Ø (inside/outside)
  0.85″/1.0″ ( 22/25 mm )

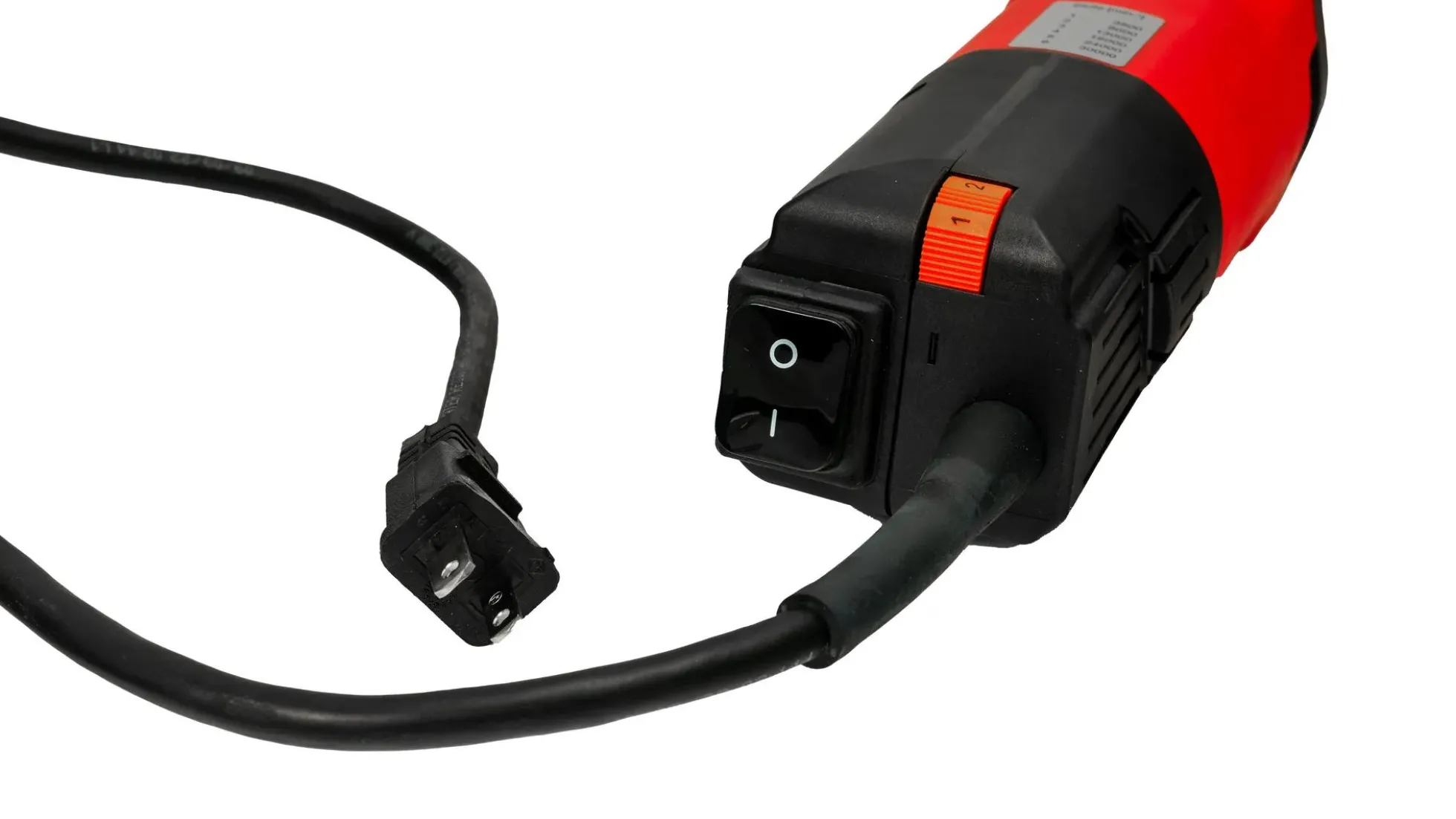

Suhner UAK 30 RF SPZ-L

• Input power
  1,340 watts
• Output Power
  1.8hp
• Infinitely variable speed
  3,500 – 30,000 rpm
• Torque
  0.45 Nm
• Voltage
  120 volts / 60 Hz
• Noise level
  72 dB at 9000 rpm
• Max. Router bit Ø
  2.16″ ( 55 mm )

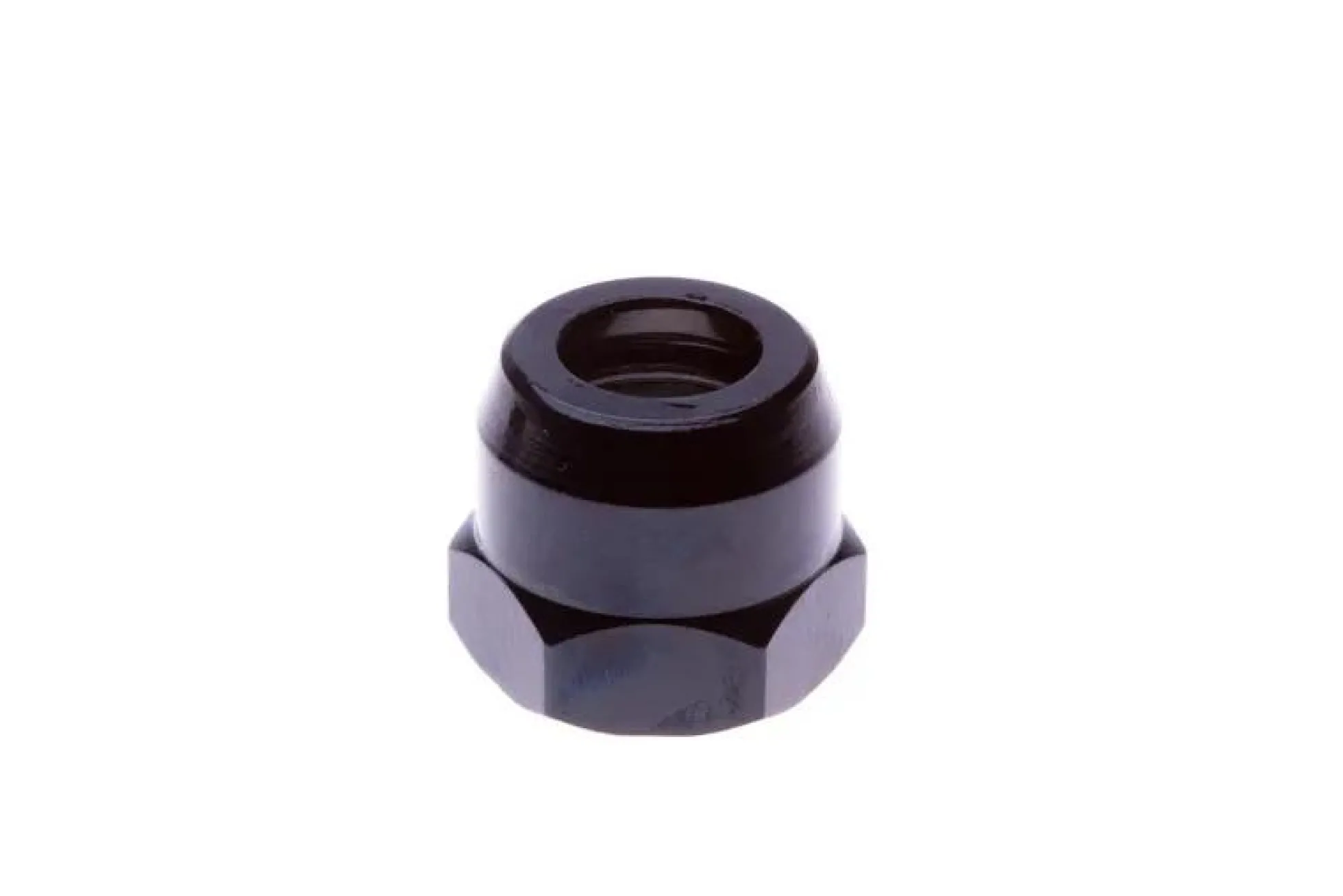

• Collet chuck
  1/4″ + 1/2″
• Further collets to be purchased separately.
• Collets up to 1/2″ (12.7 mm ) possible
• Weight
  6.3lb ( 2,85 kg )
