Router Lift FML-BR and Suhner Motor Starter Set – US Red Edition
Original price was: €1,075.86.€112.65Current price is: €112.65.

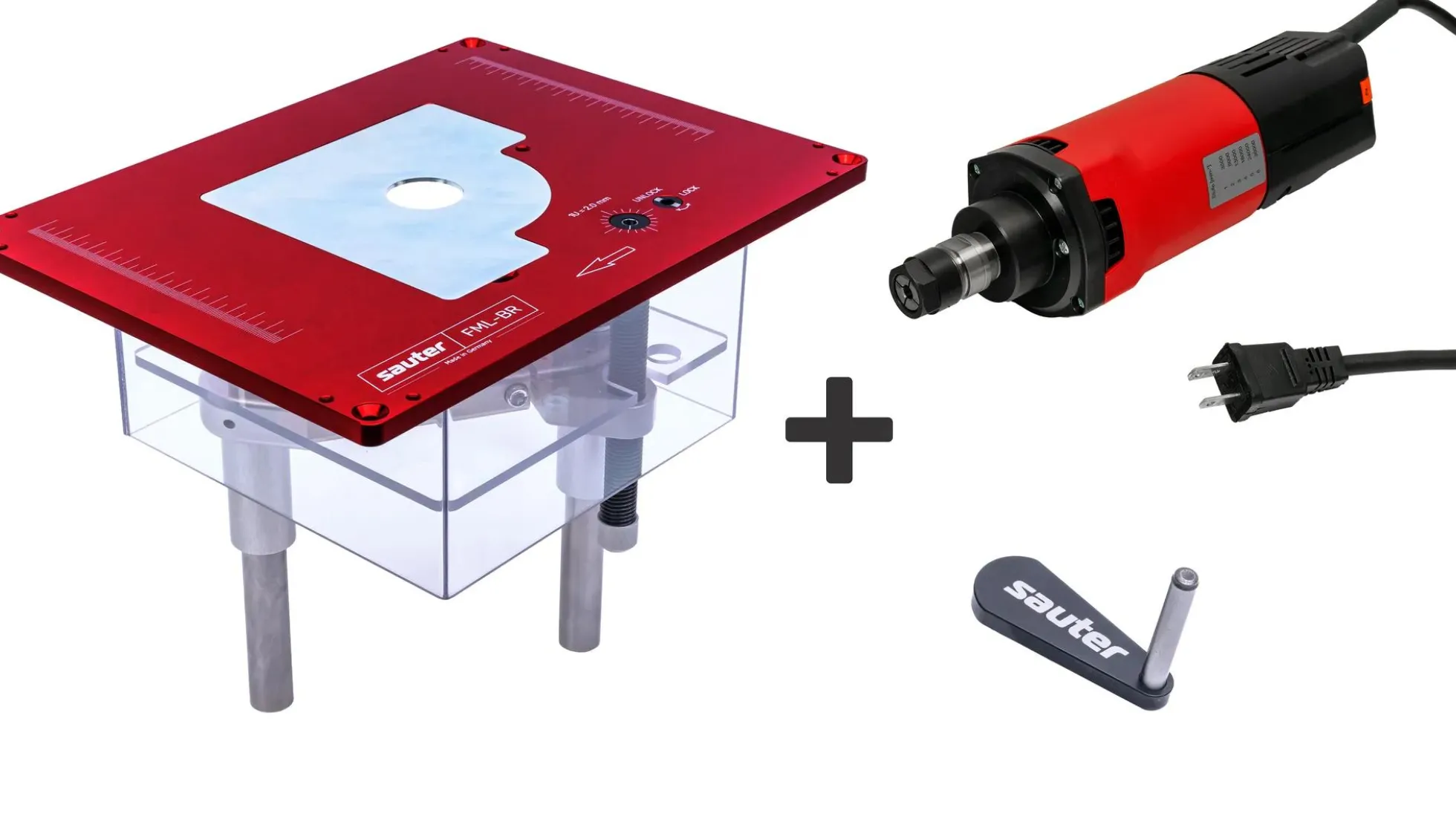

Sauter FML-BR Red version router lift and Suhner UAK30 RF SPZ-L Starter Set
Version especially developed for the North American market with a powerful router motor fully compatible and compliantwith the 120v / 60hz power grid
This set serves as your gateway to the realm of router tables. Our top-tier Sauter router lift boasts unparalleled precision and exceptional dust extraction, courtesy of the enclosed dust compartment beneath the table. Crafted in our manufacturing plant in southern Germany, these lifts uphold the region’s legacy of exquisite craftsmanship. The robust motor, sourced from the esteemed German company Suhner in the Black Forest, is renowned globally for its quality, their motors are the preferred choice among German automotive manufacturers.
Compatible with various popular router tables, including those from Kreg, WoodRiver, Woodpeckers, and Harveys, this lift is a versatile addition to your woodworking setup.
Using a motor and lift in your router table provides significantly more flexibility and precision compared to using a plunge router mounted in a table insert. It simplifies standard tasks and enables shaping of narrower boards, straightening board edges, trimming edges, and various other woodworking tasks. Router tables enhance the accuracy and efficiency of all router-related work. Moreover, they enable operations typically reserved for a shaper, such as edge shaping, hinge making, dado cutting, and a range of woodworking tasks beyond the capability of a standalone plunge router.
Technische Daten
sauter FML-BR RL Red Router Lift
- Max. Routing cutter Ø
3.26″ ( 86 mm )
- Cutter opening Ø
3.86″ ( 98 mm )
- Travel
3.94″ ( 100 mm )
- Adjustment travel per revolution
0.8″ ( 2 mm )
- Spindle locking from above with hexagon socket (5 mm)
- Dimensions of insert plate
9 1/4″ x 11 3/4″ x 3/4″ ( 298 x 235 x 9 mm )
- Corner radius of insertion plate
3/4″ (19,05mm)
- Depth below table
8 1/3″
- Weight
approx. 8.8lb ( 4.0 kg )
- Extraction nozzle Ø (inside/outside)
0.85″/1.0″ ( 22/25 mm )
Suhner UAK 30 RF SPZ-L
- Input power
1,340 watts
- Output Power
1.8hp
- Infinitely variable speed
3,500 – 30,000 rpm
- Torque
0.45 Nm
- Voltage
120 volts / 60 Hz
- Noise level
72 dB at 9000 rpm
- Max. Router bit Ø
2.16″ ( 55 mm )
- incl. collet chuck
1/4″
- Further collets to be purchased separately.
- Collets up to 1/2″ (12.7 mm ) possible
- Weight
6.3lb ( 2,85 kg )
Eigenschaften & Vorteile
- sauter FML-BR RL Router Lift
- Perfectly tuned: Comfortable and reliable accommodation of the router motor.
- Efficient and clean:Unique, integrated extraction connectionfrom below.
- Magnetic reduction plates to optimize dust extraction available in 8 different sizes (2 included)
- Fitting: Suitable for allrouter motors withØ 43 mmclamping neck.
- Smooth: Verysmooth height adjustmentand reliable spindle locking from above.
- Comfortable: Easyrouter bit change from abovethanks to exposed and very accessible router spindle.
- Precise: Fine height adjustment can be set to1/10 mm (1/250 Inch) exactly.
- Safe and practical: router can be controlled via safety switch.
- No loss of milling depth.
- High-contrast laser scaling.
- Easy and quick mounting in the router table.
- Quality100% made in Germany.
- Fits perfectly inKreg and Harveyrouter tables and many more
- Suhner UAK 30 RF SPZ12
- Ideal for the router table: Powerful – low weight – tool holder up to 12.7 mm (1/2″).
- Protectively insulated universal motor with extremely high efficiency – unrivalled in robustness and effect.
- Extremely powerful, enormously high-torque motor with large power reserve in a compact design.
- Very stable clamping neck Ø 43 mm (1.68″) in steel design – for installation in drill stands, CNC and milling devices.
- Precision double ball bearing – for powerful and highly accurate routing.
- Tool holder via classic OZ collets with clamping nut for optimum guidance of the tool shank and precise concentricity.
- Exact concentricity even under the heaviest loads – guarantees results and safety.
- Ideally suited for heavy routing operations in window construction, in the furniture industry, for dowel and profile routing, for edge processing, etc..
- Design incl. tacho control electronics for constant working speeds for even cutting speeds, high running smoothness, blocking protection, soft start for jerk-free starting, fast cycling and PTC thermal monitoring.
- Quality100% made in Germany.
